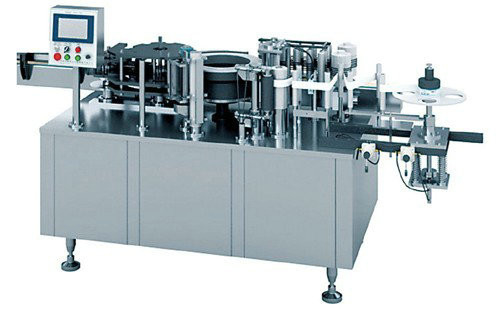

Automatic Bottle Labeling Machine

1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic



Features:


1. Adopt the overall vertical labeling mode, automatically label cutting, automatic labeling.
2. Microcomputer continuously variable control system, automatic detection in accordance with the feed, automatic adjustment of the production rate to maintain the labeling machine always in the best production rate.
3. Applying the star-wheel feeding, to ensure not pour the bottle under high speed.
4. Host Controller working with the frequency three-phase motor to control transmission.
5. Label supply applying the servo motor synchronous tracking cutting, specially designed vacuum drum high-speed absorption, accurate and stable labeling.
6. Transmission mode applying the linked design, stability and precision under high-speed labeling.
7. Linked design encountering abnormal or unusual torque, the safety devices can automatically and immediately shut down the machine.
8. Labeling position can be adjusted up and down.
9. Hot melt machine below the set temperature, the labeling action can not be started.
10. Without label, the machine automatically stops, and the alarm function starts.
11. Label is not affixed, the machine automatically stops, and the alarm function starts.
12. Alarm function for label missing or not leaving gap.
13. Alarm function for running out of labels.
14. Indicator lamp and alarm function for abnormal status.
15. The centralized lubrication system is easy to clean, lubricate and maintain.
16. Conveyor line production, easy and quick installation.



Standard Machine Configurations:

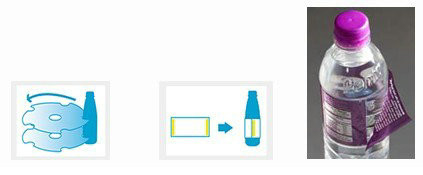

1. Vacuum drum: strong label absorption and adhering to make tight fitting of label and bottle.
2. Different size of star wheel: to separate the transport bottle steadily.
3. Cutter wheel: cut the whole volume of label cut into leaflets in a specific location.
4. Coating wheel: coat the hot melt adhesive on the head and end of one piece of label.
5. Belt label pressing wheel: fit the labels and bottles by pressure.
6. Melt glue machine: melt the block hot melt adhesive.
7. Conveyor belt: length of 2 m, with power and chain plate.

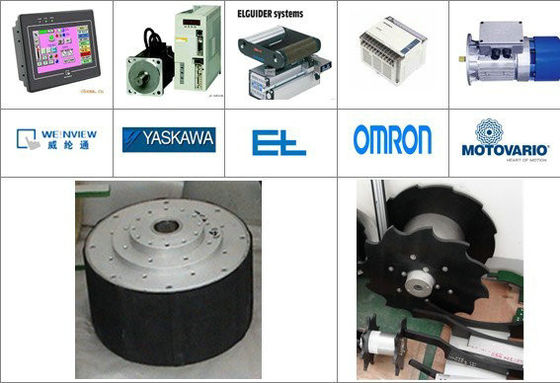

Standard Electrical Configurations:

Technical Parameters:
