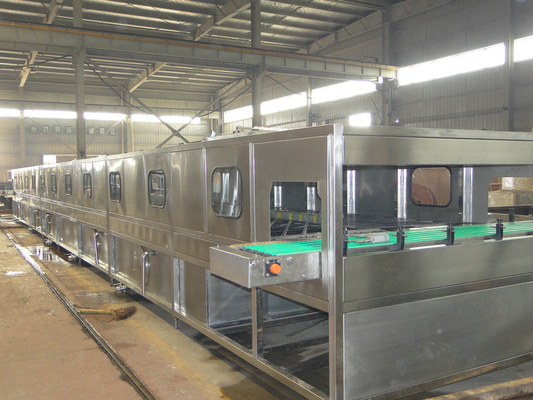

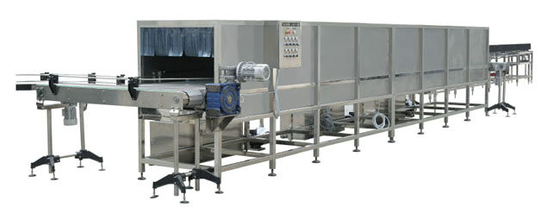

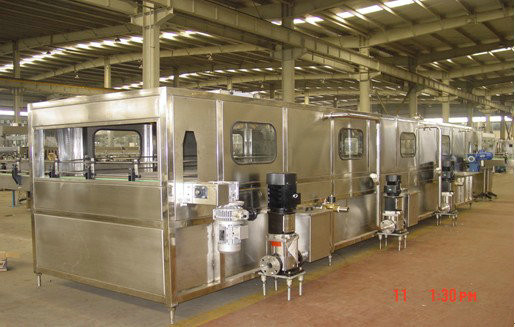

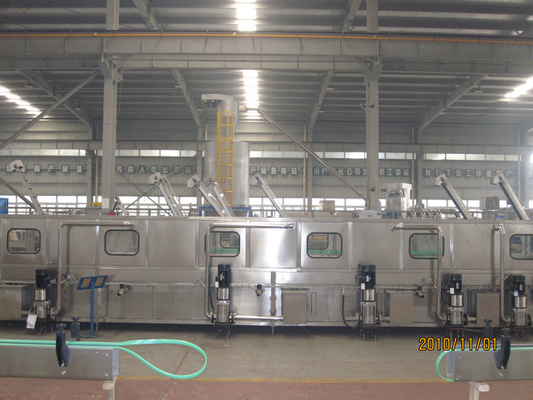

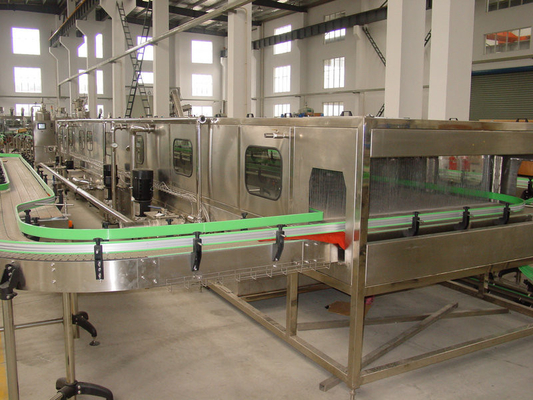

High Efficiency Bottle Cooling Tunnel

Large Image : High Efficiency Bottle Cooling Tunnel Get Best Price

Product Details:

Certification:	CE, ISO
Model Number:	PLJ(WP)100,PLJ(WP)150,PLJ(WP)200,PLJ(WP)250,PLJ(WP)300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	60 -120 working days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Production Capacity:	6000/9000/12000/15000/18000BHP	Automatic Grade:	Automatic
Certification:	CE, ISO	Feature:	High Efficiency
Filling Capacity:	500ml/b	Name:	Bottle Cooling Tunnel
Highlight:	Hot Filling Machine , bottle filling equipment

1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic

High Efficiency Bottle Cooling Tunnel Hot Filling Machine

Description:

This machine can reduce the temperature of hot filling drinks to 36℃-40℃, or increase the temperature of cold filling carbonic acid drinks to 36℃-40℃. (can choose only one function).It is used in PE bottles hot tea drinks and carbonic acid drinks hot filling production line. Productivity: 5000-36000bottles/hour, spray time: about 15-20minutes.

Specifications:

This machine is integrated with those new and advanced technologies applied to most of the popular cooling equipment in the world. The newly version thanks to the three-stage disposal of the cooling water circulation, the cooling time of which can be frequency controlled according to users requirements. It can give ideal cooling effects to all kinds of non-carbonated beverage, such as tea, wine, sauce, vinegar, juice and other beverages. The smoothing and abrasion-proof chain plates, the intellectualized microcomputer control parts from OMRON (Japan), the beautiful and cleanly body is made by SUS304 stainless steel, ensure the reliable, stable operation and beautiful appearance.

1. High reliability conveying device and flexibility speeding system; The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof. The driving conveying adopts stepless motor which can change the speed of conveying belt easily.

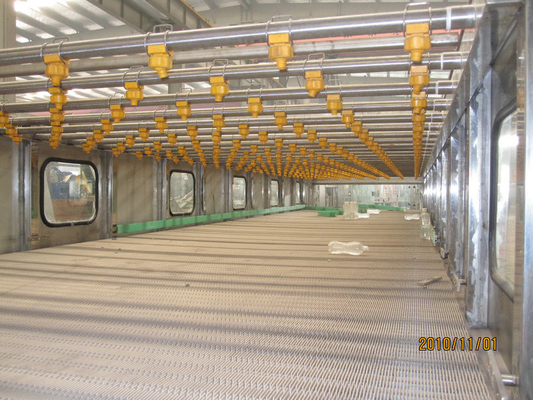

2. High effective spraying system. Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area.
3. The temperature can be controlled flexibly and easily set. The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100℃

Technique Parameters

model		PLJ(WP)100	PLJ(WP)150	DLJ(WP)200	PLJ(WP)250	PLJ(WP)300
Production Capacity		6000(500ml/b)	9000 (500ml/b)	12000(500ml/b)	15000(500ml/b)	18000(500ml/b)
set temperature		15－30°C	15－30°C	15－30°C	15－30°C	15－30°C
total treatment time		18-20min	18-20min	18-20min	18-20min	18-20min
applicable bottles	diameter	F50－F110	F50－F110	F50－F110	F50－F110	F50－F110
applicable bottles	height	H£370mm	H£370mm	H£370mm	H£370mm	H£370mm
effective treatment area		9.3m²	12.4m²	18.7m²	22.5m²	32.1m²
Total electricity consumption		9.55kw	12.25kw	16.25kw	21.6kw	29kw
water starting consumption		5.4t	7.5t	20t	24t	40t
water running consumption		30－50kg/H	40－60kg/H	64－85kg/H	76－102kg/H	86－112kg/H
the cooling capacity of the cooling column		28m³/h	45m³/h	60m³/h	85m³/h	140m³/h
dimension		7000´1650´1870	7000´2220´1870	10000´2220´1870	12010´2220´1870	16010´2220´1870
weight		2.7t	3.4t	3.9t	5.2t	6.8t

High Efficiency Bottle Cooling Tunnel 0

ASG Advantage:

1. Competitive price & good quality
2. ODM/OEM is available
3. In-time delivery time
4. Qualified sea worthy wood case
5. Quick & effective service
6. 1-year warranty, life-time service

Tag: Spray cooling tunnel, cooling equipment, cooling hot filling drinks, cold filling carbonic acid drinks, cooling hot tea drinks, cooling hot filling production line.
