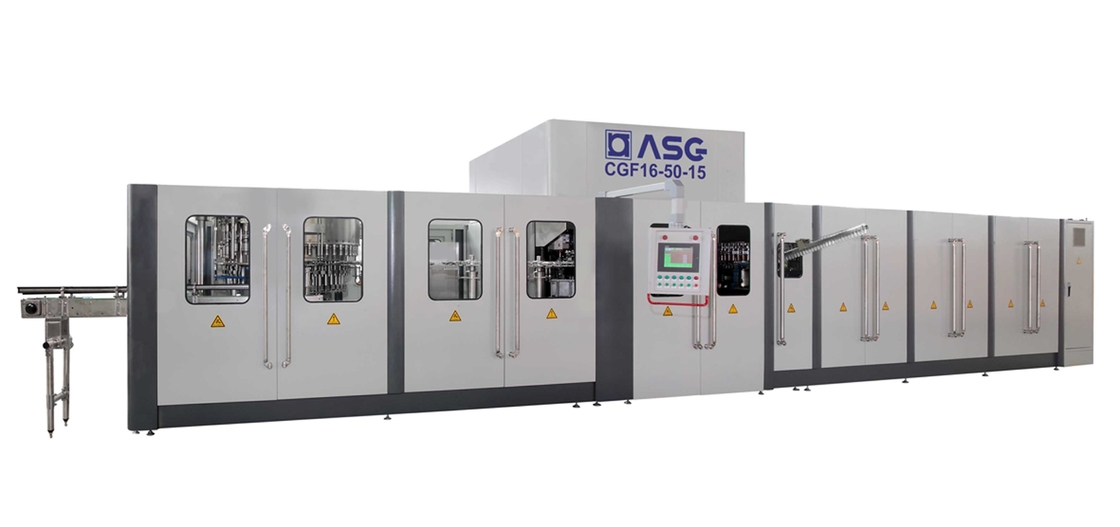

10000 BPH 220 / 380V Washing Filling Capping Machine For Pure Water / Wine

Large Image : 10000 BPH 220 / 380V Washing Filling Capping Machine For Pure Water / Wine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ASG
Certification:	CE, ISO
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	60~120 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Air Consumption(m3/35bar):	8	Automatic Grade:	Automatic
Driven Type:	Electric	Feature:	Blowing-filling-capping Combi-block
Filling Capacity:	500ml	Name:	Pet Bottle Filling Machine
Production:	10000BPH	Application:	Pure Water\|mineral Water\|liquid\|juice\|Beverage
High Light:	water filling production line , water filling machine

10000 BPH 220 / 380V Washing Filling Capping Machine For Pure Water / Wine

Product detail:

Type	Blowing,Filling,sealing Machine
Condition	New
Application	Food, Medical, Chemical
Packaging Type	Bottles, Barrel
Packaging Material	Plastic
Automatic Grade	Automatic
Driven Type	Electric
Voltage	380V/220V
Power	256KW
Place of Origin	Jiangsu, China (Mainland)
Brand Name	ASG

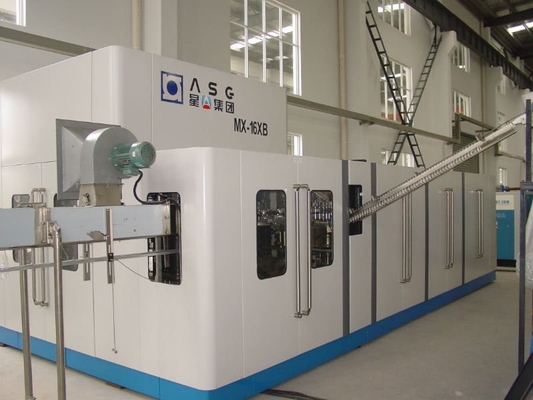

Model Number	MX-16XB
Dimension(LWH)	430032003200
Weight	19000kg
Certification	ISO;CE;SGS;CIQ
After-sales Service Provided	Engineers available to service machinery overseas
Use	PET bottle blowing machine
Color	White plastic bottle blowing machine
Model Number	MX series
Packing Type	Wooden case
Rate of Finished Product	99.5%
Sanitation	Closed and high sanitation level
Transportation Way	Sea transportation
Operation	Touch screen

1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic
5. Save energy, save space

Technique Parameters:

Model	Capacity(BPH/500ml)	Air consumption(m3/35bar)
CGF06-24-06	10000	8

Introduction:

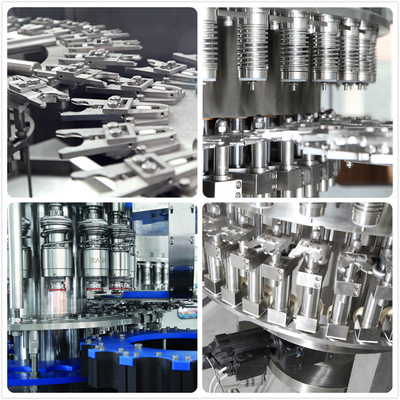

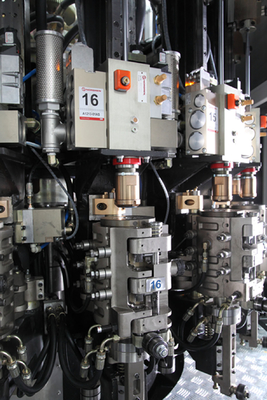

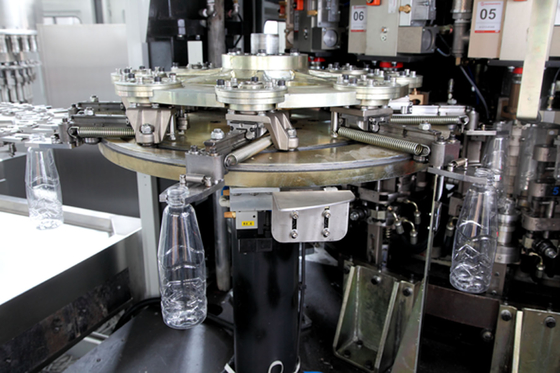

Blowing-filling-capping combi-block is based on rich and successful experience of complete line projects of ASG Group, merging technology of rotary, filling and capping, realizing continuous process of blowing, filling and capping through blowing process, filling process, capping equipment and intelligent integration innovation. This equipment is mainly composed of the following six systems: preform loading system, preform unscrambler, preform heating system, blowing, and filling, capping and electrical integration system.
Taking 24000BPH (500ml) water line for example, compared to traditional split technology, it can save more than 30% water, more than 15% electricity, more than 60% space, more than 20% equipment investment and more than 15% operation cost for users.
The capacity range is 8000-36000BPH for options.

Main parts manufacturer:

No.	Description	Brand	Country
1	Main motor	SEW	Germany
2	Transducer	SIEMENS	Germany
3	PLC Control software	SIEMENS	Germany
4	Programmable controller	SIEMENS	Germany
5	Operation center	SIEMENS	Germany
6	Low-voltage electrical	Schneider/SIEMENS	Germany
7	Infrared lamps	TOSHIBA	Japan
8	Infrared thermometer	OPTEX	Japan
9	Encoder	KOYO	Japan
10	Limit switch	OMRON	Japan
11	Photoelectric sensor	OPTEX	Japan
12	Proximity switch	GARLO	Sweden
13	Intermediate relay	OMRON	Japan
14	Aviation plug	HARTING	Germany
15	Torque clutch	MAYR	Germany
16	Low pressure control solenoid valve	FESTO	Germany
17	High pressure solenoid valve	FESTO	Germany
18	Cylinder	FESTO	Germany
19	Gas filter	FESTO	Germany
