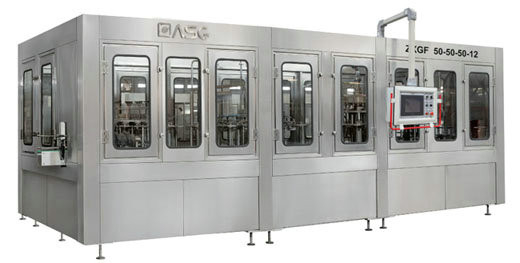

Automatic Tea Juice Bottling Machine Ultra Clean System 6000BPH
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Mineral/pure Water/wine/beer/Drinking Water/Beverage/5 Gallon/Beer/Water/Carbonated/Juice/Mineral Wa | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Filling Capacity: | 500ml/B |
| Name: | Juice Filling Machine | Production: | 6000BPH |
| High Light: | plastic bottle unscrambler,bottle unscrambler |
||
Automatic Tea Juice Bottling Machine Ultra Clean System 6000BPH
1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic
Description:
Moderate temperature filling technology adopts nor-mal PET bottle and fills tea drinks and drinks juice at 68℃. Products can reach the requirement of shelf life without any preservatives. The capacity ranges from 5,000BPH to 36,000BPH.
Specifications:
ZXGF PET bottle 4/5 in 1 cooling chain filling machine makes up sterilize, washing, filling, capping and CIP rinsing, which bases of recommending, digesting and receiving from foreign advanced technology. According to hot filling working process of China’s tea and juice beverage, we develop and design the advanced PET bottle hot filling machines in domestic.
Technique Parameters:
|
model |
ZXGF16-16-16-5 |
|
|
working position |
washing bottle16 bottle washing 16 filling 16 capping5 |
|
|
capacity |
6000BPH (500ml/B) |
|
|
Suitable bottle model |
Bottle dia. |
50~105mm |
|
Bottle height |
190 ~320mm |
|
|
Air source pressure |
0.7MPa |
|
|
Air consumption |
0.8 m3/min |
|
|
Bottle washing water consumption |
0.9 t/h |
|
|
Working pressure (AC) |
380V |
|
|
Control voltage (DC) |
24V |
|
|
Main motor power |
3KW |
|
|
Dimension |
L5450-W2200-H2200 |
|
ASG Advantage:
1. Competitive price & good quality
2. In-time delivery time
3. Qualified sea worthy wood case
4. Quick & effective service
5. 1-year warranty, life-time service
moderate temperature filling machine, 4/5-in-1 moderate temperature filling production line, China’s tea and juice beverage production system
