Carton Automatic Bottle Packaging Machine With High Efficiency

Large Image : Carton Automatic Bottle Packaging Machine With High Efficiency Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ASG
Certification:	CE, ISO
Model Number:	ZX

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Wooden case
Delivery Time:	60 working days
Payment Terms:	T/T, L/C
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Automatic Grade:	Automatic	Driven Type:	Electric
Name:	Bottle Packaging Machine	Power:	220V/380V 50/60HZ
Certification:	CE\|ISO	Feature:	Low Loss\|All In One
High Light:	Bottle Packing Machine , Automatic Shrink Wrap Machine

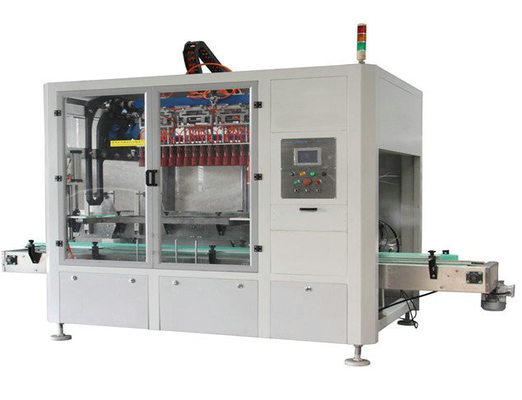

Carton Automatic Bottle Packaging Machine With High Efficiency

1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic

Features:

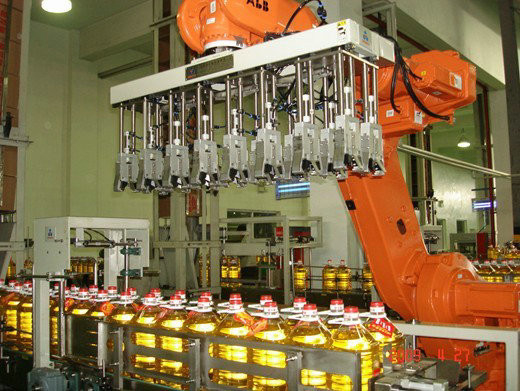

Working reliable: grabbing and putting bottles are realized by grab head charge and exhaust. Bottles are put into cartons by Robert reliably.
Operation correctly: Level and down movement of packing are made by Robert. Parameters and action match are set by electric procedure to make bottle stable.
High production efficiency: during working process, time allocation is reasonable, level movement is fast.
Easy operation: running automatically, operation easily and maintenance easily.
Synchronized with the entire production line: bottle conveying and carton conveying are equipped with inverter, the speed is synchronized with the entire production line.

Technical parameters

Model	Power	Carton size	Speed	Dimension
ZX-01	220V/380V 50/60HZ 3.5KW	L200-500W150-400H100-450mm	4-8cartons/min; 8-16cartons/min	150020002300mm
ZX-01S	220V/380V 50/60HZ 3KW	L250-500W200-400H100-450mm	10-20 cartons/min; 20-40 cartons/min	200015002050mm
ZX-01J	220V/380V 50/60HZ 5KW	L250-500W200-400H100-450mm	20-40 cartons/min	230018002550mm

Carton Automatic Bottle Packaging Machine With High Efficiency 0

ASG Advantage:

packing machine, carton packing machine, automatic carton packing machine

1. Competitive price & good quality
2. OEM is available
3. In-time delivery time
4. Qualified sea worthy wood case
5. Quick & effective service
6. 1-year warranty, life-time service
