Fully Automatic Film Heat Shrink Packing Machine With Low Noise
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Heat Shrink Packing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Feature: | All In One, High Efficiency |
| Operating Panel: | Touch Screen | Certification: | CE, ISO |
| High Light: | auto packing machine,shrink packing machine |
||
1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic

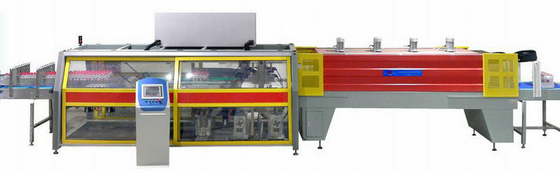

Fully Automatic Film Heat Shrink Packing Machine With Low Noise
Description:
Specially designed and manufactured for the high-speed packing requirements of drinks (purewater, beverage, fruit juice, and milk product).
During the product forward conveying process, it can automatically group the product into package,so as to save time enhance packing efficiency.
Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.
The ideal model of middle & high-speed heat-shrinking packager is the first choice in the domestic market.
Specifications:
1.Compact &artistic shape. The frame is novel, unique.
2.Electronic induction feeding film, action is balanced and quickly replacing film.
3.Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
4.Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
5.The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
6. Disposition: SIEMENS; OMRON; UNIQUC; NORGEN advanced control components of the world, well-equipped.
Technical Parameters
|
Item |
YCBS-25 |
YCBS-45 |
YCD-6535 |
|
Work power |
three-phase-five- line 380V/50Hz |
three-phase-five- line 380V/50Hz |
three-phase-five- line 380V/50 ~60Hz |
|
Working pressure |
0.6~0.8Mpa |
0.6～0.8Mpa |
0.6～0.8Mpa |
|
Shrink chamber size |
2400L×650W×450H(mm) |
2500L×700W×450H (mm) |
1800L×650W×450H(mm) |
|
Package efficiency |
15~20pcs/min |
:~40pcs/min |
0 ~15pcs/min |
|
Sealing& cutting temperature |
190℃~230℃ |
190℃~230℃ |
140℃~160℃ |
|
Shrink temperature |
200℃~280℃ |
200℃～280℃ |
200℃～280℃ |
|
Package material |
PE |
PE |
PE |
|
Roll of film width |
≤600mm |
≤600mm |
≤580mm |
|
Roll of film thickness |
0.06~0.12mm |
0.06～0.12mm
|
0.06～0.12mm |
|
Roll of film diameter |
≤450mm |
≤450mm |
≤400mm |
|
Work noise |
≤65dB |
≤65dB |
≤65dB |
|
Total power |
35KW |
30KW |
19KW |
|
Total weight |
2500kg |
4500kg |
1500kg |
|
Dimensions |
11450L×1100W×2100H(mm) |
17685L*1530W*2500H(mm) |
5500L×2700W×2100H(mm) |
ASG Advantage:
Full Automatic hot shrinking package machine, Automatic PE film shrink packing machine, PE film shrinking wrapper.
1. Competitive price & good quality
2. ODM/OEM is available
3. In-time delivery time
4. Qualified sea worthy wood case
5. Quick & effective service
6. 1-year warranty, life-time service
1. Competitive price & good quality
2. ODM/OEM is available
3. In-time delivery time
4. Qualified sea worthy wood case
5. Quick & effective service
6. 1-year warranty, life-time service
