3 in 1 Mineral Water Filling Machine For 500ml PET Bottle 14000BPH - 15000BPH

3 in 1 Mineral Water Filling Machine For 500ml PET Bottle 14000BPH - 15000BPH

A. Water Filling Brief:

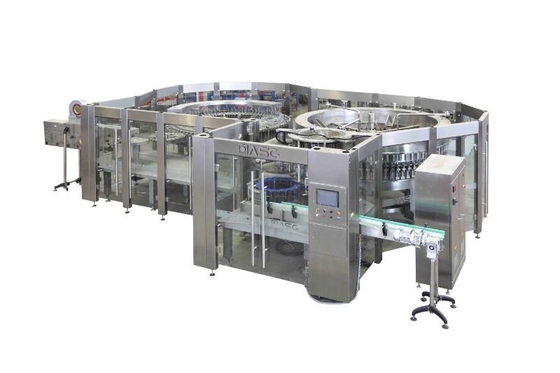

XGF type three in one filling machine for PET bottles integrates washing, filling, capping. It learns from advanced technology from outside according to processing requirements of pure water, mineral water ect.

B. Working Process:

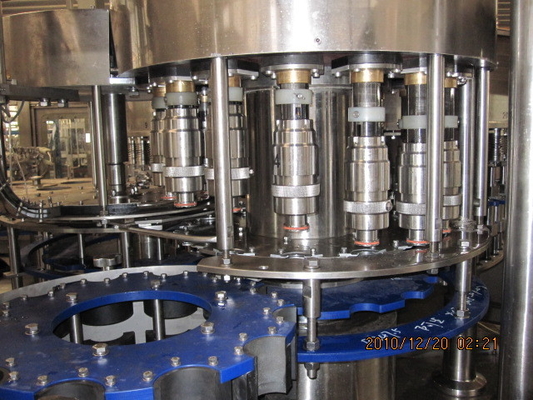

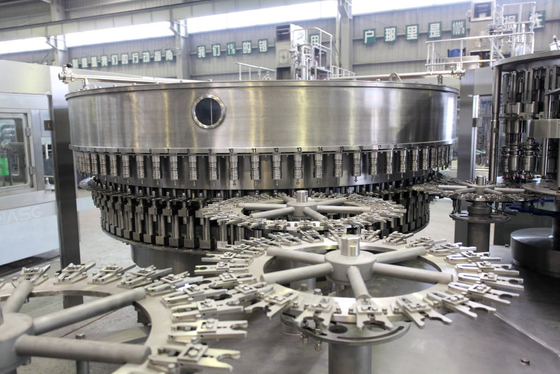

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through bottle outlet thumb wheel.

C. Main Configurations:

D. Main machines' list:
