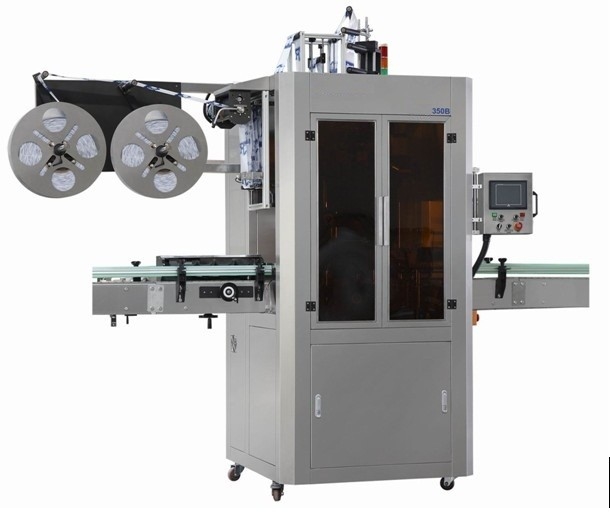

Beverage Shrink Sleeve Applicator Machine For Filling Line

Beverage Shrink Sleeve Applicator Machine For Filling Line

A. Brief instruction:

This type of machine has the function of bottle transportation, bottle distribution, label inserting and label shrinking and it is high speed, exact location fewer worker and perfect packaging. It can be applied to food and beverage industry and has good appearance and easily maintain.



B. Main features:

1.Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, it’s maintenance is easy and maintain is simple, so it doesn’t influence production.

2.Unit cutter head plane design in China which apply to the container of Dia.30mm—Dia.70mm. it never need to change or debug it. It also has unique light touch human-machine screen, that means auto search original location as well as safety and convenience which is ahead of other congener products.

3.Single shrinking label feed plane, suitable height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient; besides, the cutting place is absolutely precision.

4.Label feeding parts: driving synchronized tensility control the supply of label, the supply ability is 90meters per min, volume label supply plane is Dia.500mm, and the internal diameter of paper tube will be 4’, 8’, 10’ .the configuration of label feeding is stable tensility which enables the exact length of label and the stable, quick supply of label.

5.The center pillars apply step by step shoot label structure and the speed is 150B per min.

6.The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure enable the precision of cut location within 1mm.

7.Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

8.Special designed hot air shrinking tunnel use high pressure fan which makes the shrink effect perfect. Compare with the traditional shrink tunnel which cannot shrink curved bottle, this head wind shrink tunnel can make the shrink effect satisfying.
