Equipment profile:

CIP system is the function of automatic cleaning of all product contact surface cleaning including tank wall and pipe wall, the inner wall of the cylinder, and other liquid channel.

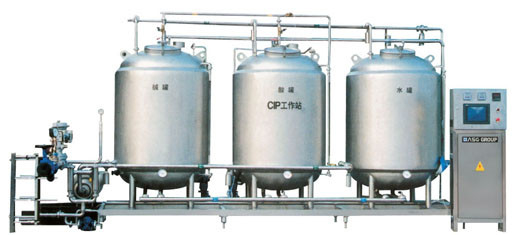

CIP system is consist of cleaning fluid tank, acid and alkali adding device, heater, process and the reflux pump, pipeline, the steam valve group,etc.
The key technical parameters of the CIP system is cleaning fluid type, concentration, temperature and flow rate. Alkali liquor usually use NaOH, acid liquor use nitric acid or phosphoric acid, concentration1-3%, proper heating, the cleaning velocity between 1.5-3 m/s

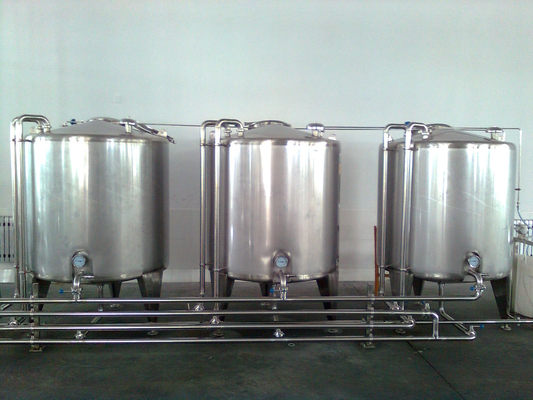

Cleaning fluid storage tank usually have three: Acid tank, alkali liquor tank, hot water tank. Depending on the different cleaning object, it can be divided into single loop, double circuit, multi-loop, etc
Automatic CIP system of strong acid, strong alkali added, cleaning fluid temperature is automatic control, cleaning sequence is braking performed after setting.
