3000BPH - 30000BPH Hot Filling Machine CIP Cleaning System Automatic Beverage

3000BPH - 30000BPH Hot Filling Machine CIP Cleaning System Automatic Beverage

Brief instruction

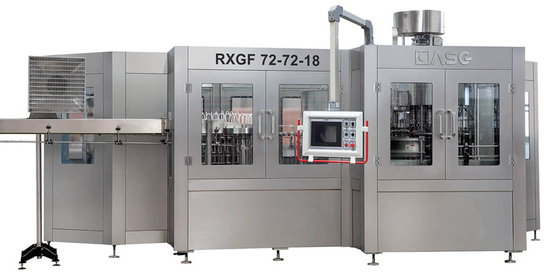

RXGF type is filling machine combines the function of washing, filling, capping, CIP cleaning system in one machine, based on the introduction, digestion and absorption of foreign advanced technology, according to tea drinks, fruit juices and other drinks hot filling process requirements in China, self – develop and design glass bottle filling machine with a leading domestic level.

Workng process

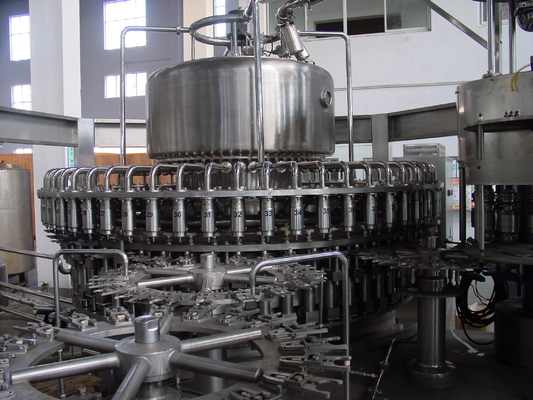

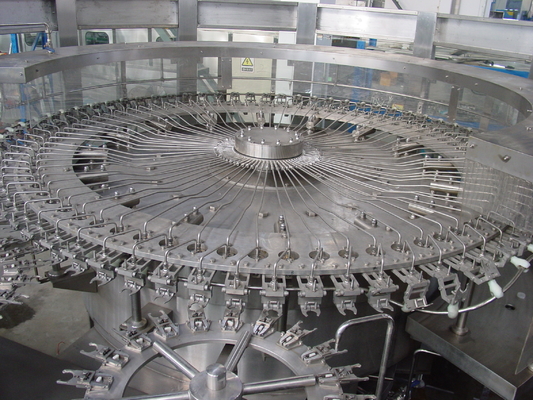

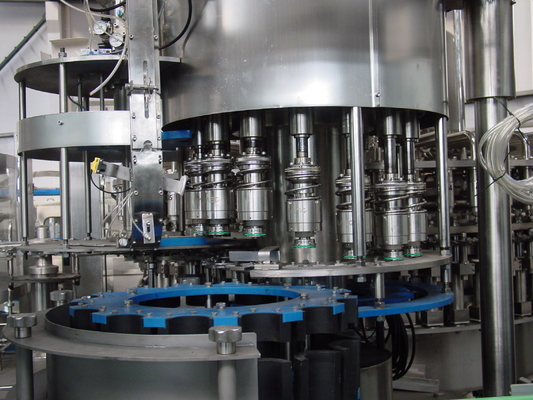

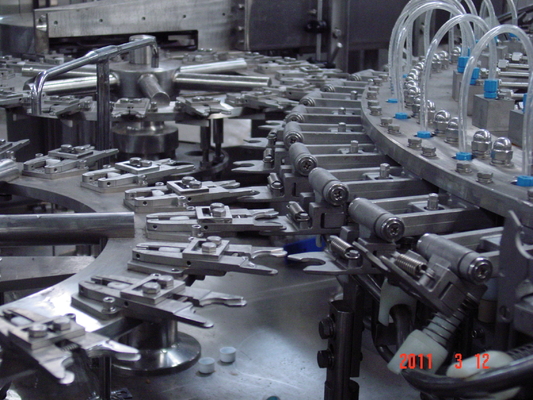

The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through bottle outlet thumb wheel. The whole process adopts bottle neck clamping method.
