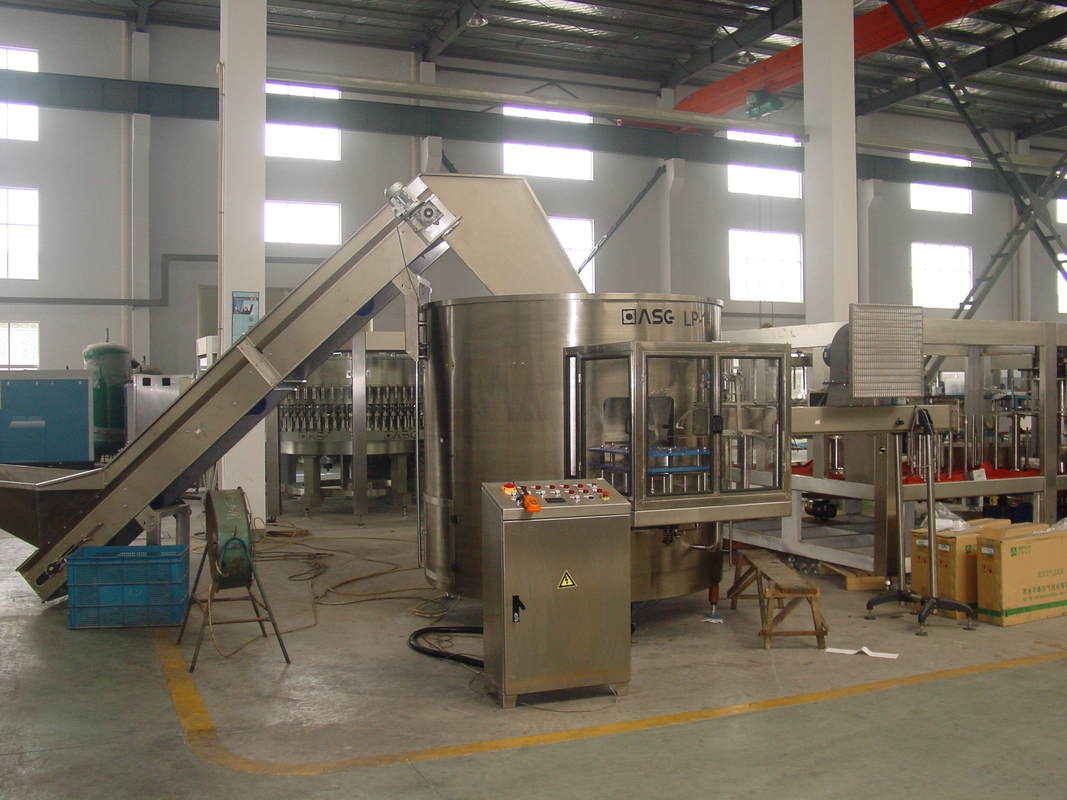

Full Automatic Plastic Bottle Unscrambler CE Approved For Filling Line

Full Automatic Plastic Bottle Unscrambler CE Approved For Filling Line

A Brief instruction:

LP-Model Push type unscrambler are national advanced bottle unscrambling equipment, which

are based on world advanced technology, designed and developed according to our country’s

developing trend of high speed and automation of drink’s filling equipment.

The main machine has cylinder appearance with adjustable feet at the bottom for changing

machine’s height and level. In the cylinder, there is a rotating cylinder, and outside of rotating

cylinder, there is the dropping bottle slot, the inner side is equipped with lifting device, which the

amount is the same with dropping bottle slots. At the center of machine, there is a fixed umbrella

shape tower. When the lifting device send out short of bottle message according to the bottle

detecting device on the tower, bottle will drop onto umbrella shape tower from top center of the

machine, then enter lifting device from the edge of tower. Under the action of cam, the lifting

device pushes bottle into the bottle slot. After unscrambling in the slot, the bottle rotates along

with bottle slot to the exit of unscrambler. The poking bottle starwheel at the exit will push the

bottle into air convey way. The starwheel joins shaft of main motor through time geared belt.
