13000BPH Blow Fill Seal Machine Line For CSD Water / Mineral Water
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Air Consumption(m3/35bar): | 8 | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Feature: | Blowing-filling-capping Combi-block |
| Filling Capacity: | 500ml | Name: | Pet Bottle Filling Machine |
| Production: | 13000BPH | Application: | Mineral Water|liquid|juice|Beverage |
| High Light: | washing filling capping machine,water filling machine |
||
13000BPH Blow Fill Seal Machine Line For CSD Water / Mineral Water
Product details:
| Certification | ISO;CE;SGS;CIQ |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Use | PET bottle blowing machine |
| Color | White plastic bottle blowing machine |
| Model Number | MX series |
| Packing Type | Wooden case |
| Rate of Finished Product | 99.5% |
| Sanitation | Closed and high sanitation level |
| Transportation Way | Sea transportation |
| Operation | Touch screen |
| Type | Filling Machine |
| Condition | New |
| Application | Food, Medical, Chemical |
| Packaging Type | Bottles, Barrel |
| Packaging Material | Plastic |
| Automatic Grade | Automatic |
| Driven Type | Electric |
| Voltage | 380V/220V |
| Power | 256KW |
| Place of Origin | Jiangsu, China (Mainland) |
| Brand Name | ASG |
| Model Number | MX-16XB |
| Dimension(L*W*H) | 4300*3200*3200 |
| Weight | 19000kg |
1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic
5. Save energy, save space
Introduction:

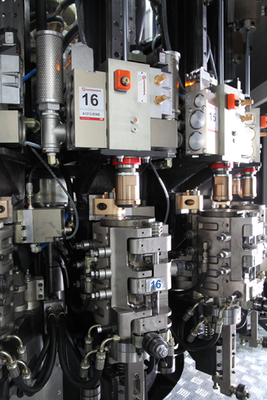

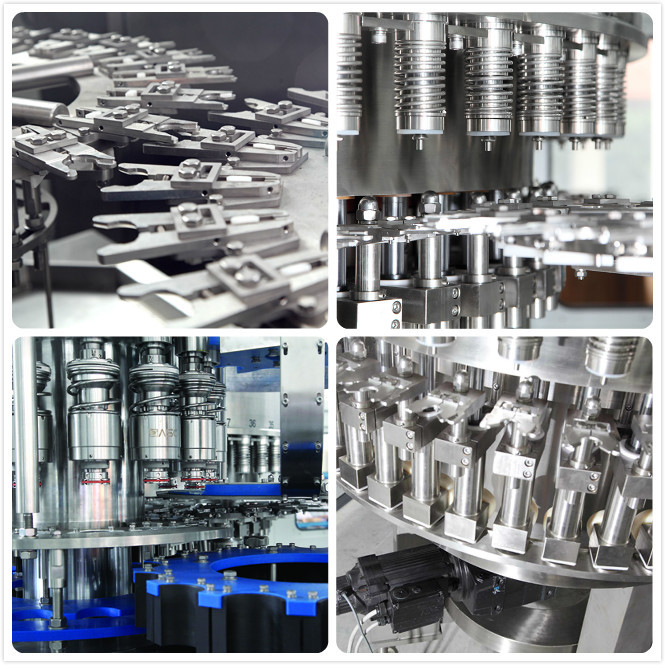

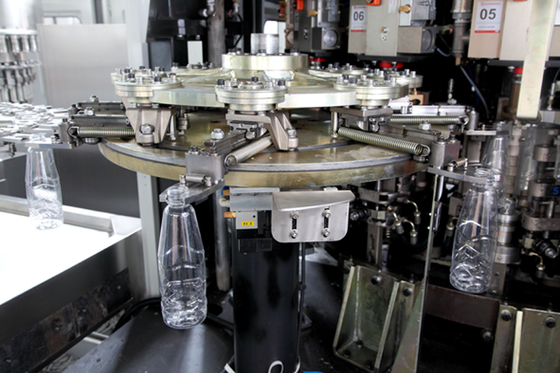

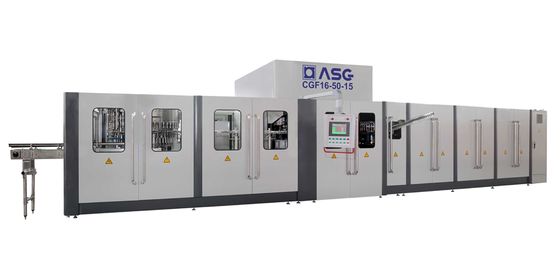

Blowing-filling-capping combi-block is based on rich and successful experience of complete line projects of ASG Group, merging technology of rotary, filling and capping, realizing continuous process of blowing, filling and capping through blowing process, filling process, capping equipment and intelligent integration innovation. This equipment is mainly composed of the following six systems: preform loading system, preform unscrambler, preform heating system, blowing, and filling, capping and electrical integration system.
Taking 24000BPH (500ml) water line for example, compared to traditional split technology, it can save more than 30% water, more than 15% electricity, more than 60% space, more than 20% equipment investment and more than 15% operation cost for users.
The capacity range is 8000-36000BPH for options.
Technique Parameters:
|
Model |
Capacity(BPH/500ml) |
Air consumption(m3/35bar) |
|
CGF06-24-06 |
13000 |
8 |
Main parts manufacturer:
|
No. |
Description |
Brand |
Country |
|
1 |
Main motor |
SEW |
Germany |
|
2 |
Transducer |
SIEMENS |
Germany |
|
3 |
PLC Control software |
SIEMENS |
Germany |
|
4 |
Programmable controller |
SIEMENS |
Germany |
|
5 |
Operation center |
SIEMENS |
Germany |
|
6 |
Low-voltage electrical |
Schneider/SIEMENS |
Germany |
|
7 |
Infrared lamps |
TOSHIBA |
Japan |
|
8 |
Infrared thermometer |
OPTEX |
Japan |
|
9 |
Encoder |
KOYO |
Japan |
|
10 |
Limit switch |
OMRON |
Japan |
|
11 |
Photoelectric sensor |
OPTEX |
Japan |
|
12 |
Proximity switch |
GARLO |
Sweden |
|
13 |
Intermediate relay |
OMRON |
Japan |
|
14 |
Aviation plug |
HARTING |
Germany |
|
15 |
Torque clutch |
MAYR |
Germany |
|
16 |
Low pressure control solenoid valve |
FESTO |
Germany |
|
17 |
High pressure solenoid valve |
FESTO |
Germany |
|
18 |
Cylinder |
FESTO |
Germany |
|
19 |
Gas filter |
FESTO |
Germany |
blowing-filling-capping combi-block, automatic 3 in 1 blowing-filling-capping machine, rotary blowing-filling-capping machine, PET bottle
ASG Advantage:
1. Competitive price & good quality
2. In-time delivery time
3. Qualified sea worthy wood case
4. Quick & effective service
5. 1-year warranty, life-time service
