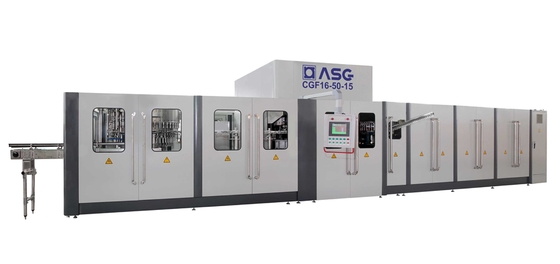

Carbonated Beverage Blow Fill Seal Machine , 21000 BPH Water Bottling Plants

Large Image : Carbonated Beverage Blow Fill Seal Machine , 21000 BPH Water Bottling Plants Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ASG
Certification:	CE, ISO
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	60~120 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

Air Consumption(m3/35bar):	18	Automatic Grade:	Automatic
Driven Type:	Electric	Feature:	Blowing-filling-capping Combi-block
Filling Capacity:	500ml	Name:	Bottle Filling Machines
Production:	21000BPH	Application:	Pure Water, Mineral Water, Liquid, Juice, Beverage
High Light:	washing filling capping machine , water filling production line

1. Low loss, low noise
2. High quality, high efficiency
3. Safe use
4. Fully automatic
5. Save energy, save space

Introduction:

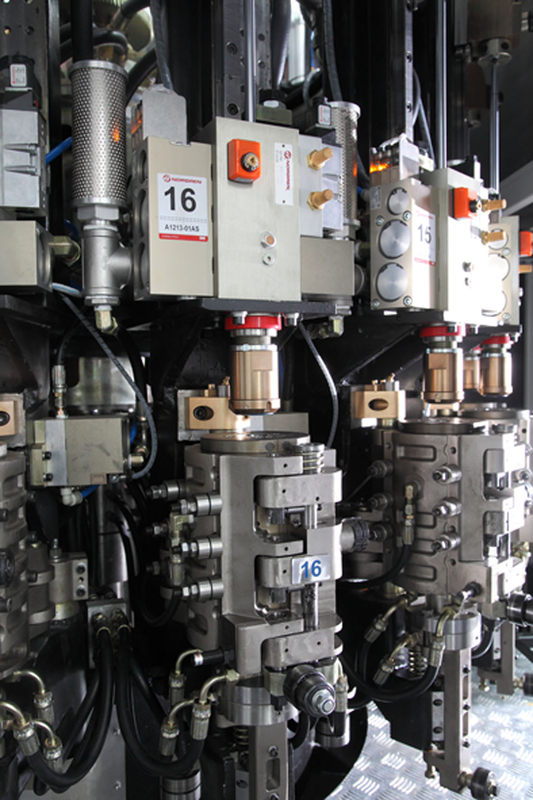

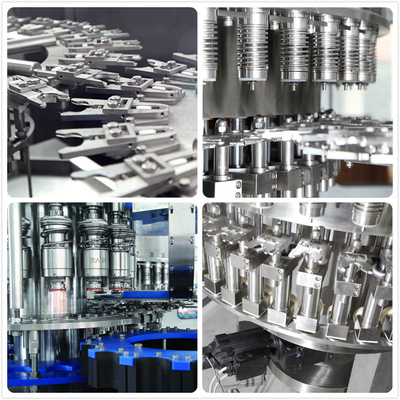

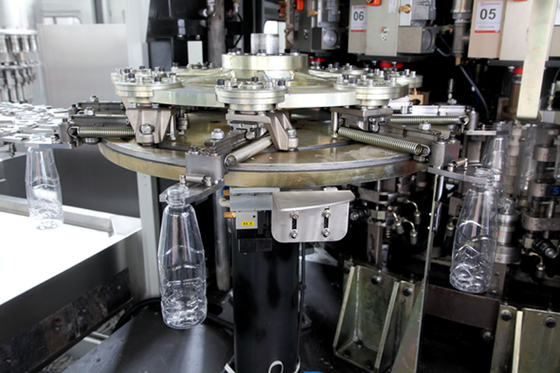

Blowing-filling-capping combi-block is based on rich and successful experience of complete line projects of ASG Group, merging technology of rotary, filling and capping, realizing continuous process of blowing, filling and capping through blowing process, filling process, capping equipment and intelligent integration innovation. This equipment is mainly composed of the following six systems: preform loading system, preform unscrambler, preform heating system, blowing, and filling, capping and electrical integration system.
Taking 24000BPH (500ml) water line for example, compared to traditional split technology, it can save more than 30% water, more than 15% electricity, more than 60% space, more than 20% equipment investment and more than 15% operation cost for users.
The capacity range is 8000-36000BPH for options.

Technique Parameters:

Model	Capacity(BPH/500ml)	Air consumption(m³/35bar)
CGF06-24-06	21000	18

Main parts manufacturer:

No.	Description	Brand	Country
1	Main motor	SEW	Germany
2	Transducer	SIEMENS	Germany
3	PLC Control software	SIEMENS	Germany
4	Programmable controller	SIEMENS	Germany
5	Operation center	SIEMENS	Germany
6	Low-voltage electrical	Schneider/SIEMENS	Germany
7	Infrared lamps	TOSHIBA	Japan
8	Infrared thermometer	OPTEX	Japan
9	Encoder	KOYO	Japan
10	Limit switch	OMRON	Japan
11	Photoelectric sensor	OPTEX	Japan
12	Proximity switch	GARLO	Sweden
13	Intermediate relay	OMRON	Japan
14	Aviation plug	HARTING	Germany
15	Torque clutch	MAYR	Germany
16	Low pressure control solenoid valve	FESTO	Germany
17	High pressure solenoid valve	FESTO	Germany
18	Cylinder	FESTO	Germany
19	Gas filter	FESTO	Germany
